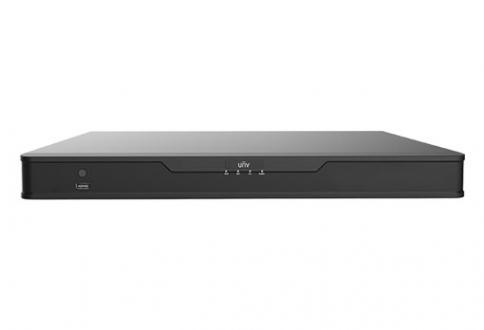

32 Channel 4 HDD NVR
- Code: NVR304-32S
- Brand: uniview
- Category: NVR
- Stock: Pre-order
Video/Audio Input
IP Video Input:32-ch
Two-way Audio Input:1-ch, RCA
Network
Incoming Bandwidth: 160Mbps
Outgoing Bandwidth: 64Mbps
Remote Users:128
Protocols: P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI: Output: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60,
1024x768@60
VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60
Recording Resolution: 8MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/CIF
Audio Output:1-ch, RCA
Synchronous Playback:16-ch
Corridor Mode Screen: 3/4/5/7/9/10/12/16/32
Decoding
Decoding format:Ultra 265,H.265, H.264
Liveview/Playback: 8MP/5MP/4MP/3MP/1080p/960p/960H/720p/D1/2CIF/CIF
Capability: 2 x 4K@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30, 16 x 720p@30,32 x D1
Hard Disk
SATA:4 SATA interface
Capacity:up to 10 TB for each disk
External Interface
Network Interface: 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface: Rear panel：1 x USB2.0, 1 x USB3.0 Front panel：1 x USB2.0
General
Power Supply:12V DC
Power Consumption:≤15W( without HDD )
Working Environment:-10°C ~ + 55°C, Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H):440mm × 344mm ×44mm
Weight ( without HDD ):≤ 3.15 Kg
Additional features
Other
- PoE Ports:
- -
- capacity per HDD:
- 10 TB
- Smart Functions:
- No;
- Outgoing Bandwidth:
- 64 Mbps
- Incoming Bandwidth:
- 160 Mbps
- IP Video Channel:
- 32
- SATA Interface:
- 4
